Externally Powered Standalone LED Beacons

All beacons include the following:

Patented side emitting acrylic Lens provides maximum light capture and projection, and excellent symmetry about the horizontal.

Acrylic Lens covers that don’t turn yellow and hazy like UV polycarbonate

Infrared (IR) programming and data transmitting capability with the use of a standard RCA remote control.

Membrane Vent which equalizes pressure in the beacon in response to environmental change. This reduces stress on the enclosure seals and prevents ingress of water, salt, dirt and other contaminants. It reduces condensation build up by equalizing pressure inside the light.

Available in white, green, red, amber and High Flux white

Some models offer GPS synchronization as an option.

Our Series CR2000 and CR6000 incorporate classical design with effective bird deterrent conical shape with spike.

Products

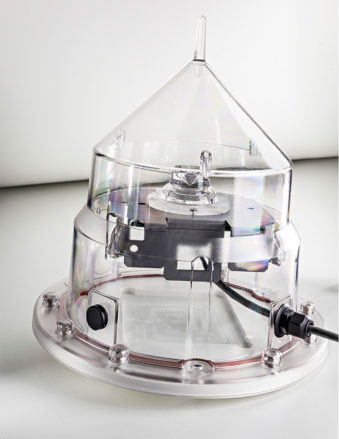

CR2201, CR2201HF, CR2202, CR2201HF

CR2201, CR2201HF, CR2202, CR2201HF

Classical design incorporates effective bird deterrent and self-cleaning conical shape with spike. Three hole mounting pattern which will accept 1/4” bolts on 7 7/8” (200mm) mounting circle. CR2201HF is Class A approved for Gulf of Mexico.

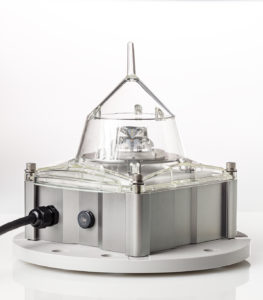

CR6100

economical, small profile with three and four hole mounting patterns which will accept ½” bolts on 7 7/8” (200mm) mounting circle. GPS synchronization optionally available.

CR7101, CR7102

CR7101, CR7102

Fully tested to meet the environmental and functional design requirements of US Coast Guard Specification 506 for standalone (external) power system. Available in 1 or 2 LED versions to cover the range of 1-8 miles visibility. Massive LED heat sinking capability good for high duty cycle flash rhythms with a lantern base large enough to fit extra ATON related equipment. Three and four hole mounting patterns using ½” bolts on 7 7/8” (200mm) mounting circle.

Externally Powered Standalone

Synchronization¹

	Peak Intensities					GPS
Product	White HF	White	Green	Red	Amber
CR2201		205	170	165	148
CR2201HF²	340
CR2202		410	340	330	296
CR2202HF	672
CR6100		205	170	165	148	X
CR7001	340	205	170	165	148
CR7002	672	410	340	330	296

¹GPS synchronization – optional
²CR2201HF – Class A
